| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ3257N3847A |
Dump truck is our Star product.We are very familiar with it and experienced in exporting it.
We pay great attention to the truck quality and performance.
Foton Dump Trucks can be used for: Short- And Medium-Distance Road Transportation, Pit Coal Mine Transportation, Sand transportation and Urban Muck Transportation.
Product Parameter
| Dimension(Lx W xH)(mm) | 6800x2490x3668 | ||
| Overhang(front/rear) (mm) | 1500/700,725 | ||
| Wheel base (mm) | 3200+1400,3225+1350 | ||
| Max speed(km/h) | 102 | ||
| Curb weight(kg) | 11930 | ||
| Loading Weight(kg) | 40000 | ||
| Engine (Steyr technology, made in China) |
Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
|
| Fuel type | Diesel | ||
| Horse Power,max | 371HP | ||
| Emission | EURO2 | ||
| Fuel tanker capacity(L) | 400 | ||
| Transmission | Model | HW19710 | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels |
||
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| Color | optional | ||
| Tyre | 12.00R20 11pics | ||
| Cab | HW76,(one sleeping, with air-condition) | ||

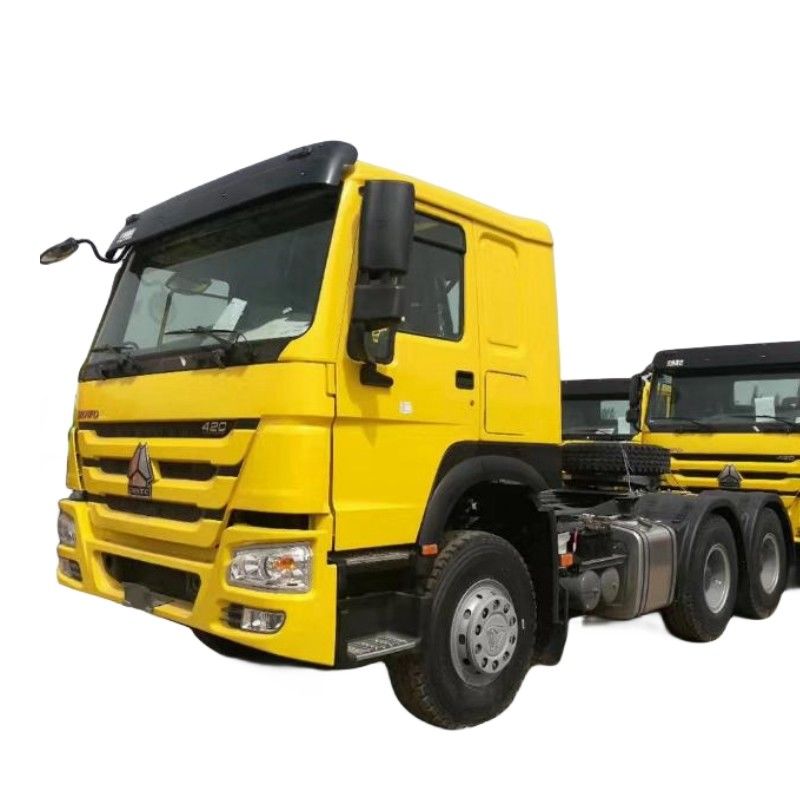

Product pohots
