Heavy Truck Tractor
>
|
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUCK |
| Certification | ISO9001 |
| Model Number | ZZ4255N3246B1 |
The semi-trailer tractor truck is the commercial vehicle equipped with a special device to tow the semitrailer. The semi-trailer front rests on the tractor truck towing the fifth wheel and the tractor truck reardrive axle withstands a part of semi-trailer weight.
Product Parameter
| Model Name | SINOTRUK HOHAN 6X4 Tractor Truck, N7/400/S32/6X4FA ZZ4255N3246B1 |
| Driving Model | LHD |
| Total weight (kg) | 25000 |
| Curb weight ( kg) | 8800 |
| Tow weight(kg) | 40000 |
| Engine | Made: SINOTRUK Model: WD615.69-400HP 336 HP Euro 2 emission standard, 6 cylinders in line,turbocharged and inter-cooling Fuel Type: Diesel |
| Displacement (L) | 9.726L |
| Cab | HW18 high roof cab, with two beds, air-conditioner, 4-point full-floating air suspension, adjustable steering wheel with various heights and angles,air suspension seat. Safety belts, outside sun visor etc |
| Transmission | HW19712, SINOTRUK 12 forward and 2 reverse iron steel shell gear box Nuclearance: 1900Nm |
| Steering | D50, made in China |
| Clutch | SINOTRUK 430 diaphragm spring clutch |
| Number of axle | 3 |
| Driving axle | ST16 SINOTRUK high strengthen cast steel two speed reductions heavy duty driving axle Axle-loading: 16T/axle Speed ratio: 4.8 |
| Axle-loading(kg) | 7000/18000(two axle paralleled) |
| Front axle | HF7, SINOTRUK 7T front axle, with disc braking system |
| Braking system | with ABS |
| Fifth wheel | 3.5inches |
| Rear track(mm) | 1830 |
| front/rear Overhang (mm) | 1500/725 |
| Wheel base (mm) | 3225+1350 |
| Tires | 12.00R22.5 Tubeless tire Number of tire: 10+ 1 |
| Fuel Tank L | 400 Option: 600L |
| Approach/departure angle(°) | 16/70 |
| Maximum speed(km/h) | 102, 80 |
| Dimensions (mm) | 6850*2496*3720 |
| Color | White/Red/Yellow/Blue/Green/Grey etc |

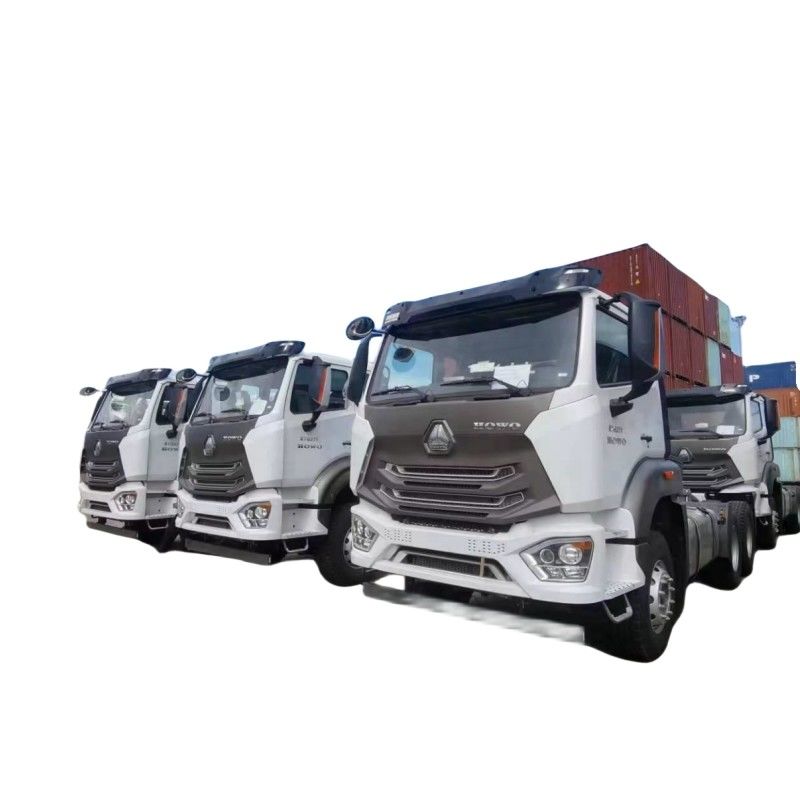

Product pohots
