| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ3257N3847A |
Dump truck is our Star product.We are very familiar with it and experienced in exporting it.
We pay great attention to the truck quality and performance.
Foton Dump Trucks can be used for: Short- And Medium-Distance Road Transportation, Pit Coal Mine Transportation, Sand transportation and Urban Muck Transportation.
Product Parameter
| RUCK SPECS | CHASSIS MODEL | ZZ3257N3847A , 6 x 4 , left hand drive | |
| Engine | Engine | WD615.47 , 371HP Euro 2 | |
| Type | 6-cylinder in line, 4-stroke, water cooled, turbo-charged & inter-cooled, direct injection. | ||
| Displacement | 9.726L | ||
| Engine power (kw) | 247 | ||
| Max. torque | 1500N.M/1100-1600rpm | ||
| Transmission | HW19710, 10 forward and 2 reverse | ||
| Front axle | HF9 | ||
| Driving axle | HC16, Ratio: 5.73 | ||
| G.R.V.W (Kg) | 25000 | ||
| Tare Weight (Kg) | 12250 | ||
| Max. Speed (Km/h) | 75 | ||
| ABS | No | ||
| Brakes | Dual circuit compressed air braking | ||
| Tires | 12.00R20 with one spare tire | ||
| Cab | HW76 with A/C, single sleeper | ||
| Outline Dimension (mm): | 8145 (L) x 2496 (W) x 3170 (H) | ||
| Wheelbase (mm) | 3825+1350 | ||
| Steering | ZF8118 | ||
| Fuel tank | 300L | ||
| DUMP BOX SPECS | Dimension of cargo box (mm) | 5600 (L) x 2300 (W) x 1500(H) | |
| Lift system | "T" style ,middle lift | ||
| Thickness of bottom plate(mm) | 12 | ||
| Thickness of side plate(mm) | 10 | ||
| Volume of dump box (m3) | 19.32 cubic | ||
| Water sprinkler for brake | Equipped | ||

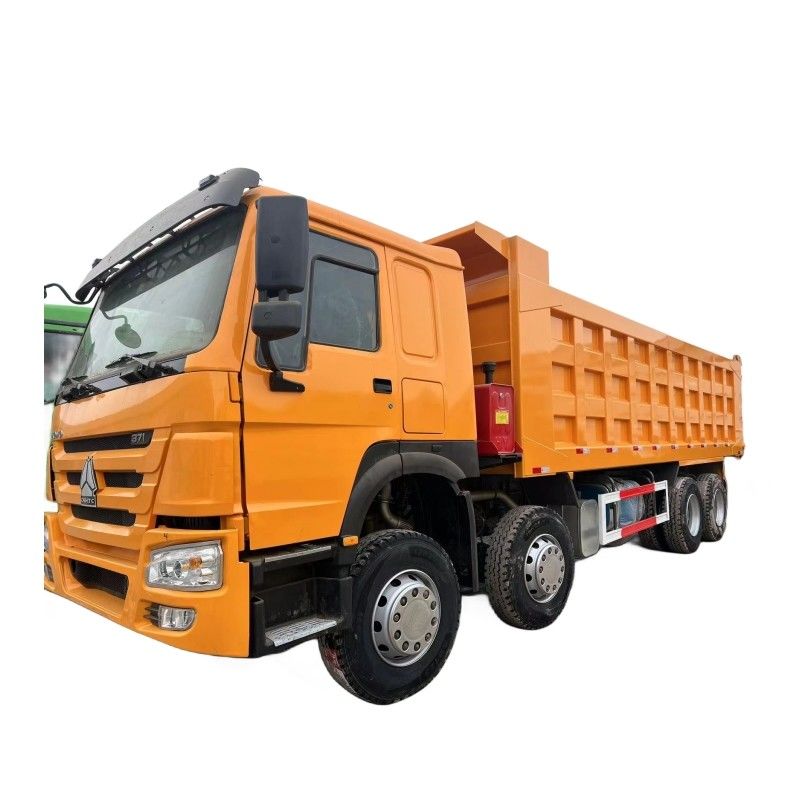

Product pohots
