| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | JSX210920UDT |
Dump truck is our Star product.We are very familiar with it and experienced in exporting it.
We pay great attention to the truck quality and performance.
Foton Dump Trucks can be used for: Short- And Medium-Distance Road Transportation, Pit Coal Mine Transportation, Sand transportation and Urban Muck Transportation.
Product Parameter
| product name | 31tons HOWO 6X4 10wheels used and Refurbish dump truck | |||||
| Year of Manufacture | 2018 | |||||
| mileage done | 32000kms | |||||
| Driving type | 6*4 | |||||
| Frame | Staight through main beam | |||||
| Dimensions (mm) | 7900×2500×3400 | |||||
| Tire | 12.00R20 | |||||
| Max speed(km/h) | 91 | |||||
| Loading Capacity | 31000kgs | |||||
| G.V.W/kg | 46000 | |||||
| Chassis curb weight(theory)/kg | about 15000kgs | |||||
| Departure Angle | front: 30, rear:27; | |||||
| Dump Box (mm) | 5200×2300×1400, hydralic pump side 6mm, bottom 8 mm, | |||||
| Track: | 2040/1850/1850 | |||||
| Engine | Type | Sinotruk | ||||
| Emission level | Euro II | |||||
| Model | WD12.42, water-cooled, four strokes, 6 cylinders in line with water cooling, turbo-charged and inter-cooling, directly injection. | |||||
| Fuel type | Diesel | |||||
| Power, max(kw/rpm) | 371HP | |||||
| Fuel Tanker capacity(L) | 400L Aluminium oil tank | |||||
| Transmission | Model: HW19710, 10speeds forward and 2reverse. | |||||
| Lights | Front profile lamp, rear profile lamp, rear tail lamp assembly, side retro-reflector. | |||||
| Driving type | Left hand driving | |||||
| Brake system | Service brake | Dual circuit compressed air brake. | ||||
| Number of gears | Spring engergy, compressed air operating on rear wheels. | |||||
| Steering system | Model: ZF8118 | |||||
| Axle | Front | HR7 | ||||
| Rear | MCY13 | |||||
| Tyres | 1200R20 | |||||
| Battery | Voltage(V) | 24 | ||||
| Battery capacity(A.h) | 165x2 | |||||
| Starter | 7.5Kw/24V | |||||
| colour | Can be customerized. | |||||

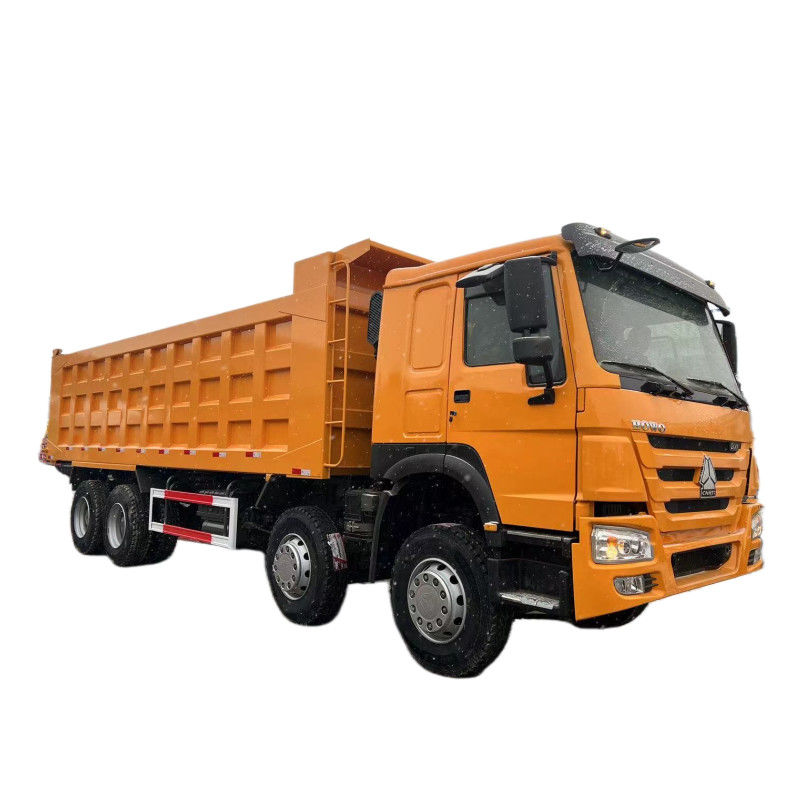

Product pohots
