| Place of Origin | CHINA |
| Brand Name | FOTON |
| Certification | ISO9001 |
| Model Number | ZZ3253DLPKB |

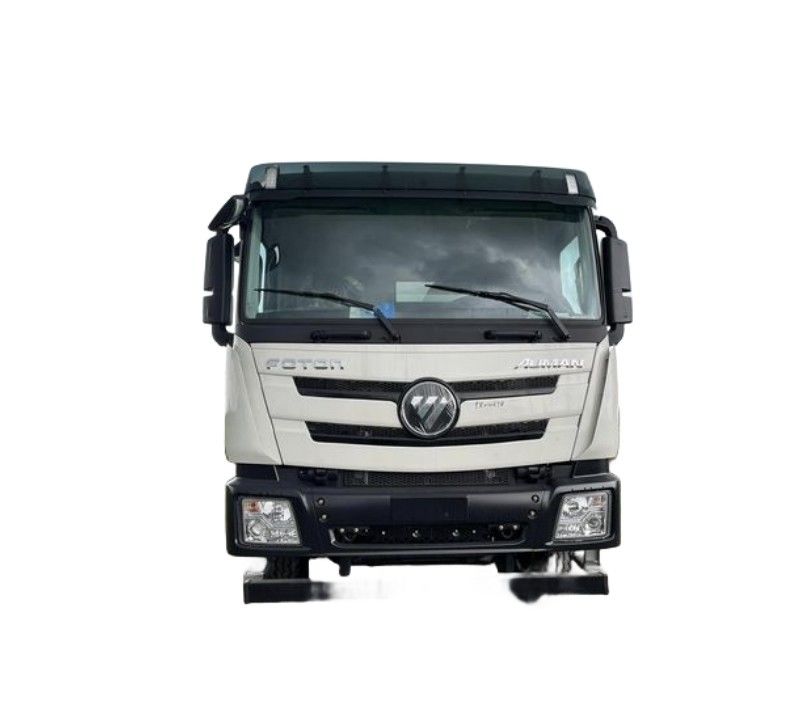

6X4 380 Hp Dump Truck 10 Wheeler Foton Brand Tipper Truck
Product parameters
| Chassis | ZZ3253DLPKB |
| Engine | WP12.38 380 HP ,EURO3 WEICHAI BRAND ENGINE |
| Cab | ETX2490 cab , one berth, safety belt for drive and co-drive, two seats, aircondition,English panel . |
| Transmission | 12JSD180T with PTO, 12 forward and 2 reverse torque 1800N.M |
| Front axle | 7.5T *1 axle Steering axle |
| Driving axle | 13 hub reduction axle *2, ratio 5.26 |
| Fuel tanker volume | 350L aluminum alloy material |
| Wheel base | 3800+1325mm |
| Max speed | 85km/h |
| Steering | AM90L-S with hydraulic assistence power |
| Tires | 12.00R20,10+1 pcs one spare tire,Radial tyre |
| Brake system | Air brake with WABCO value. |
| Cargo body size(mm) | 5600*2300*1500,19.32M3 |
| Overall dimension(mm) | 8500*2550*3450 |
| Thickness | bottom 8, side 6 mm Q345B material |
| Loading capacity | 35TON |
| Lifting system | Ventral lifting by hydraulic pump system |
| Truck chassis main beam thickness | 8+8/300 mm |
| Bumpers | rear and front bumpers in steel material |
| Color | White or as customized |
