| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ3257V3847JB2 |

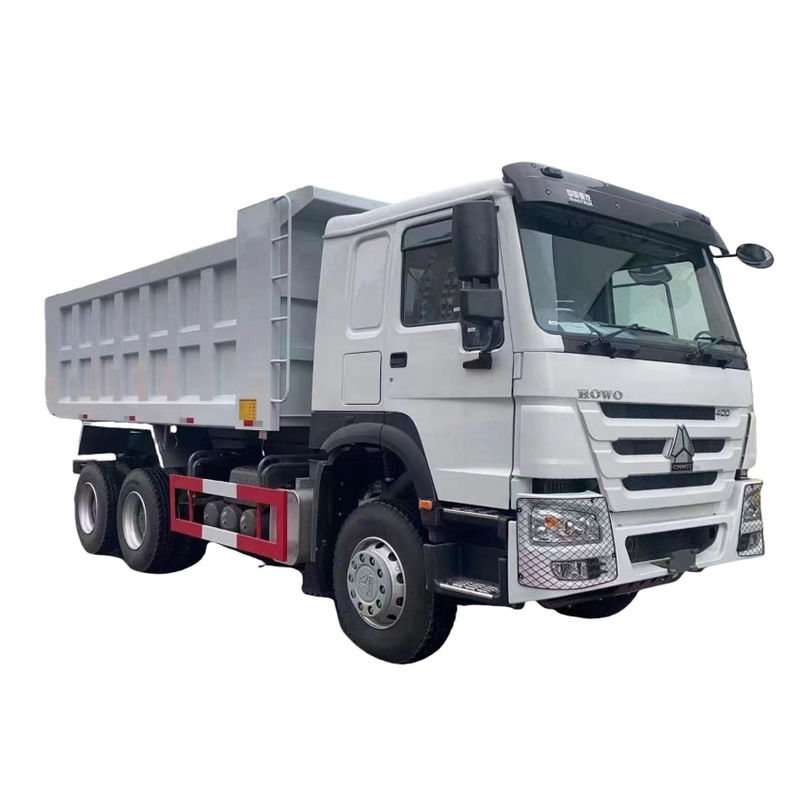

30 Tons Howo 20cbm Sinotruk 336hp 6x4 SINOTRUK Tipper Truck
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Unique metal support ring welded structure allowing good cylinder stability
3. Excellent driving axle with large loading capacity, good stability and high safety factor
arranty
5.Low oil consumption with strong horse power 371hp
6. Large volumn fuel tank for 400L
Product parameters
| Truck Chassis | Driving type 6x4 SINOTRUK TIPPER TRUCK | |||
| Cabin | HOWO 76 Standard cab, with two seats and one bed, ]with air condition |
|||
| Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm | 8500x2495x3300 | ||
| Wheel base (mm) | 3825+1350 | |||
| Weight in KGS | Tare Weight | 12600 | ||
| Front axles HF9 loading capacity | 9000 | |||
| Rear axles HC16 loading capacity | 2x16000 | |||
| Total loading capacity | 35000 | |||
| Engine | Brand | SINOTRUK | ||
| Model | WD615.47 | |||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|||
| Horse Power(HP)/(RPM) | 371HP | |||
| Emission standard | Euro II | |||
| Gearbox | HW19710, 10 forward & 2reverse | |||
| Clutch | Reinforced diaphragm clutch 430 | |||
| Steering Gear | power steering, hydraulic steering with power assistance | |||
| Fuel tank (L) | 300 | |||
| Tire | 12R22.5 tubeless tire 11pcs | |||
| Dump body | Dimension | Lx W x H | 5600x2300x1500 | |
| Thickness | Floor 8mm, side 6mm | |||
| Hydraulics | Tipping Type: Front tipping HYVA brand | |||
