| Place of Origin | CHINA |
| Brand Name | SDHIM |
| Certification | ISO9001 |
| Model Number | SDHIM |

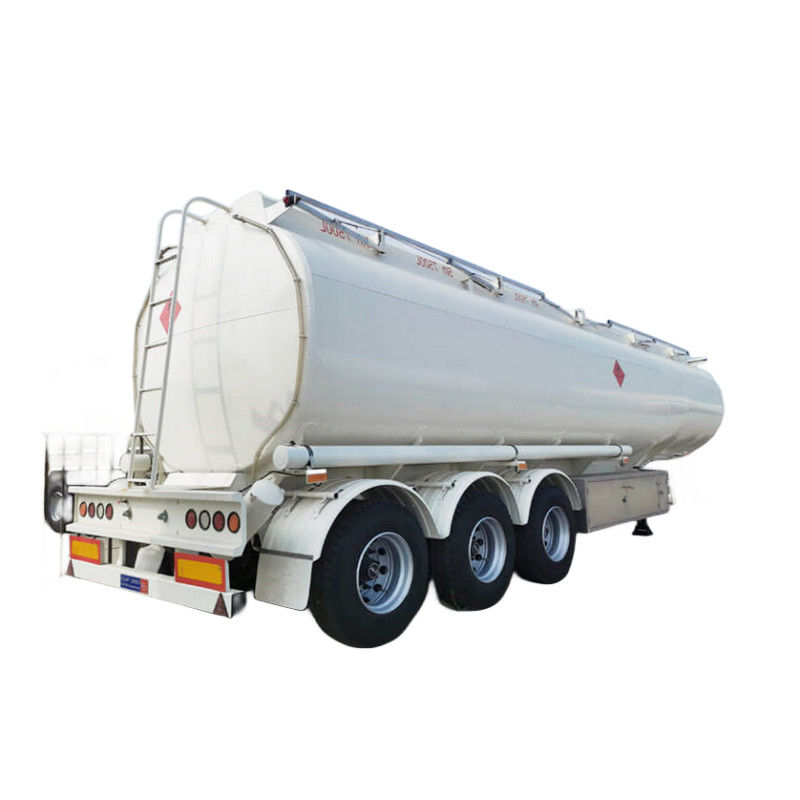

Advantages of Fuel Tanker Trailer For Sale In South Africa:
1). Fuel Tanker Trailer For Sale In South Africa Hot-rolled structural steel : Welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.
2). Fuel Tanker Trailer For Sale In South Africa Avanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.
3). Fuel Tanker Trailer For Sale In South Africa Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
4). Fuel Tanker Trailer For Sale In South Africa Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
5). Fuel Tanker Trailer For Sale In South Africa Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
| Fuel Tanker Trailer Specification | |
| Size | 11900mm*2550mm*3550mm |
| Volume | 42000 liters(7500*3+6500+5500litre) |
| Tank body thickness | 5mm |
| End plate thickness | 6mm |
| Axle | 3 axle FUWA brand |
| Suspension | Mechanical suspension |
| Manhole cover | 6pcs*500mm manhole cover |
| Tire | 12R22.5*13pcs, Triangle brand |
| Wheel rim | 13pcs |
| Discharge valve | 6pcs*4″ API valve*7pcs |
| Kingpin | 2″ or 3.5 bolt-in |
| Landing gear | SDHIM brand |
| Compartment | 6pcs or Customized |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Light | LED lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anti-corrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench |
