| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | XDE320 |

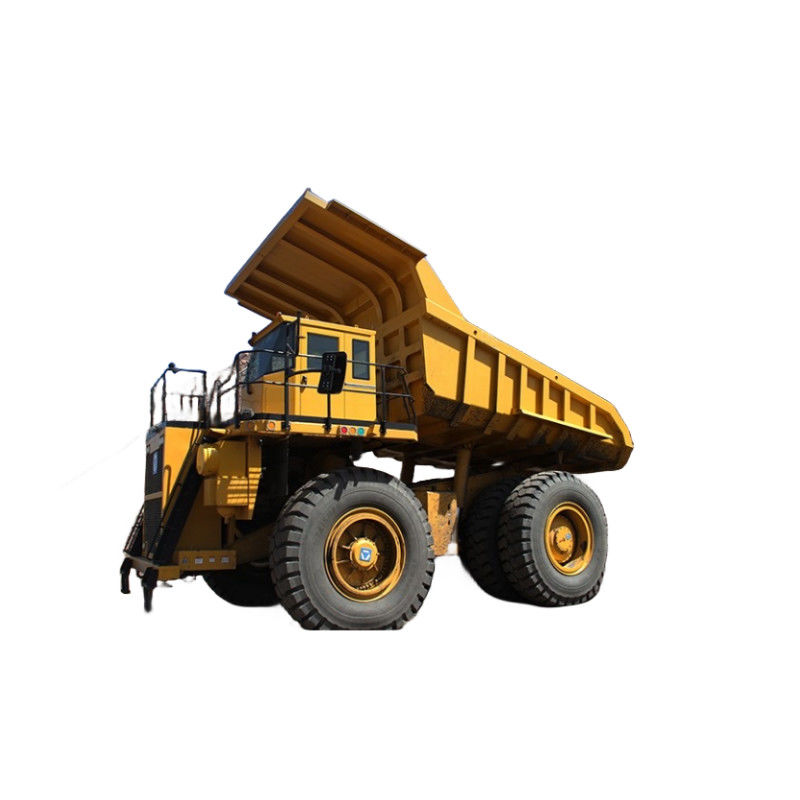

XCMG Mechanical Driver Dump Truck 320ton XDE320 Mining Mine Dump Truck
1. High performance engine
Environment-friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.
2. AC-DC-AC electric drive system
XCMG trucks utilize AC-DC-AC electric drive system, safe and reliable,with fewer failure rate and maintenance costs. Constant-power and stepless speed regulation are achieved, with more traction power to maximize the productivity.
3. Structurally enhanced frame
* Welded box sectional steel structure.
* High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability.
* Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc.
* The computer-aid design and finite element analysis ensure the frame have enough intensity.
Product Parameters
| Item | Unit | XDE320 | |
| Performance parameters | Rated Payload | t | 320 |
| Empty Weight | kg | 210000 | |
| Gross Vehicle Weight | kg | 510000 | |
| Drive Style | 4x2 | ||
| Max. Speed | km/h | 64.5 | |
| Max. Gradeability | % | 18 | |
| Min. Turning Diameter | m | 30.8 | |
| Overall dimension | mm | 15310*8930*7380 | |
| Engine | Model | 16V4000 | |
| Rated Power/Speed | kW/rpm | 2014/1800 | |
| Max. Torque/Speed | Nm/rpm | 11310/1700 | |
| Electric drive | Alternator | GTA41B | |
| Traction Motor | GDY114 | ||
| Ratio | 32.62:1 | ||
| Tires | Standard Tire | 53/80R63 | |
