| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | XG105 |
XCMG 90 Ton Mining Dump Truck XGA5105D3T Camion-Benne Minier
Product Parameters
| PERFORMANCE PARAMETERS | |
| Drive Type | 6×4 |
| Kerb Mass | 31000kg |
| GVW | 96000-105000kg |
| Max. Speed | 52km/h |
| Min. Turning Radius | 12m |
| Grade Ability | ≥33% |
| Fuel Tank | 600L |
| DIMENSIONS | |
| Dimension (mm) | 9045×3640×4010 |
| Wheelbase (mm) | 3800+1700 |
| Min. Clearance | 360mm |
| Approach Angle | 38° |
| Departure Angle | 50° |
| Front Overhang | 1755mm |
| Rear Overhang | 1890mm |
| Cargo size (mm) | 6400×3400×1850 |
| CABIN | |
| Model | K20 Left dislocation cab |
| Left/Right Driving | LHD |
| AC | Optional |
| Person Allowed in | 1 |
| ENGINE | |
| Model | WP13G530E310 |
| Emission Standard | EUR III |
| Displacement | 11.596L |
| Output Power | 390kW |
| Max Torque Speed | 2300N·m |

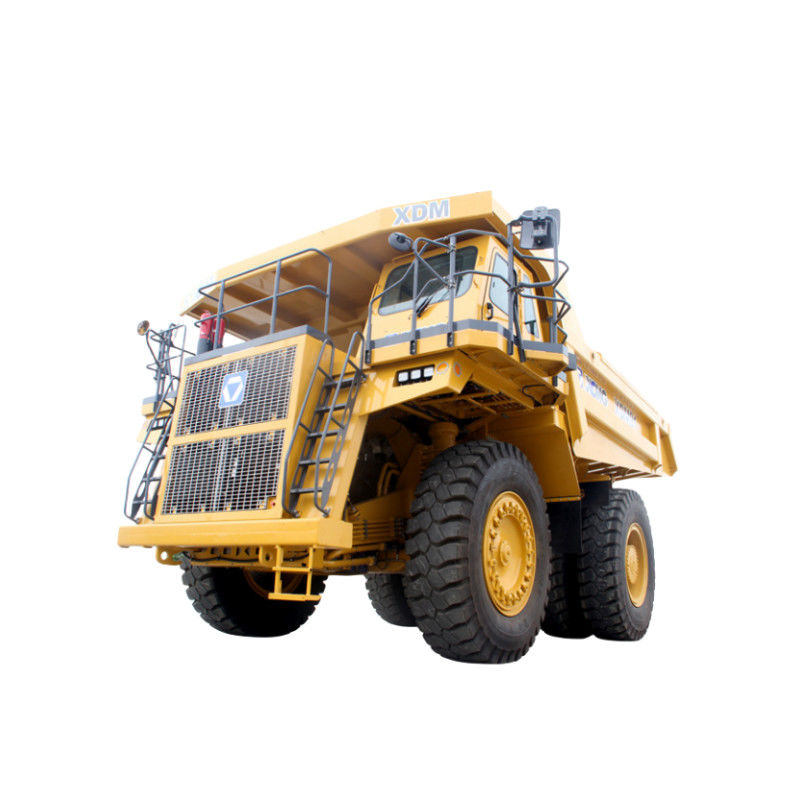

Photo Show
