| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | XDM70 |

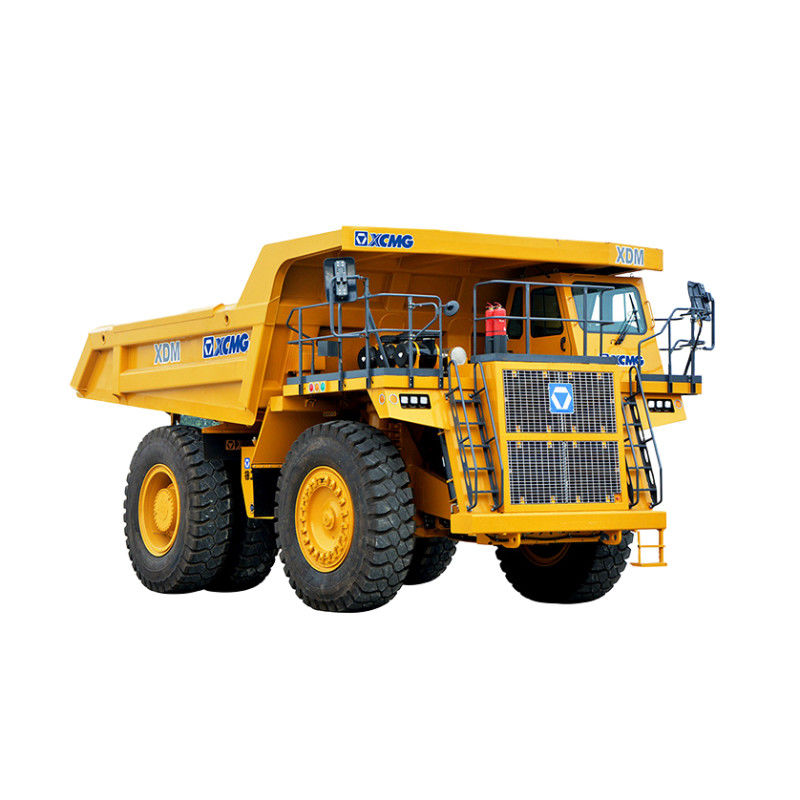

XCMG Mining Dump Truck 65ton Mechanical Driver Dump Truck XDM70 Mine Dump Truck
1. High performance engine
Environment-friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.
2. Structurally enhanced frame
* Welded box sectional steel structure.
* High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability.
* Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc.
* The computer-aid design and finite element analysis ensure the frame have enough intensity.
Product Parameters
| Item | Unit | XDM70 | |
| Performance parameters | Rated Payload | kg | 65000 |
| Empty Weight | kg | 28000 | |
| Gross Vehicle Weight | kg | 93000 | |
| Drive Style | 6x4 | ||
| Max. Speed | km/h | 55 | |
| Max. Gradeability | % | 38 | |
| Min. Turning Diameter | m | 22 | |
| Overall dimension | mm | 10290*5880*5085 | |
| Engine | Model | YC6K480-GT30 | |
| Rated Power/Speed | kW/rpm | 353/1900 | |
| Max. Torque/Speed | Nm/rpm | 2200/1100-1500 | |
| Tires | Standard Tire | 16.00R25 | |
Photo Show
