| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | XDE110 |

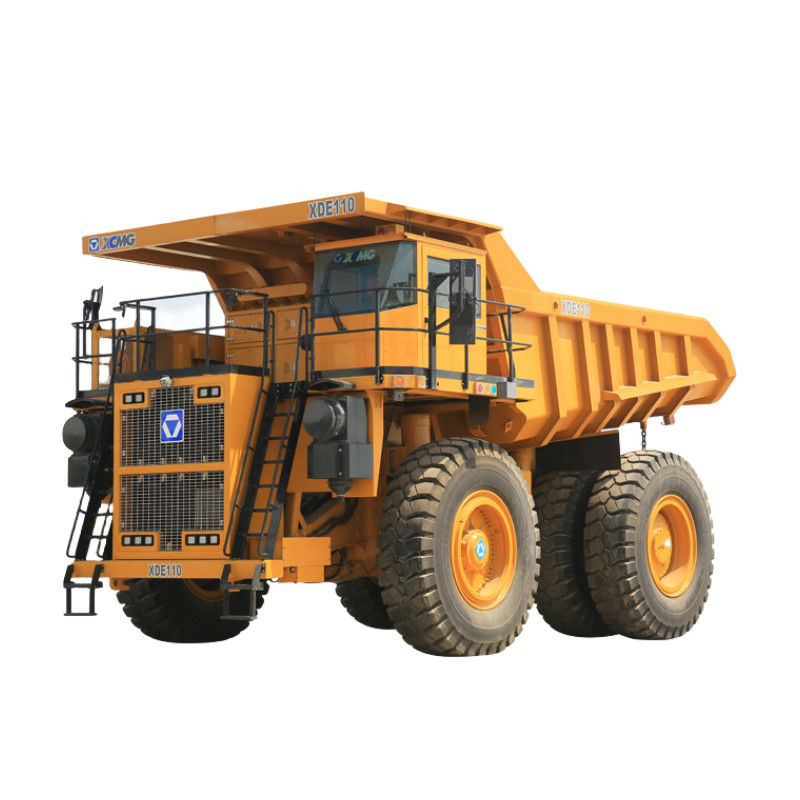

XCMG XDE110 Chinese Off-road Mining Dump Truck 110ton Mining Mine Dump Truck
1. High performance engine
Environment-friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.
2. AC-DC-AC electric drive system
XCMG trucks utilize AC-DC-AC electric drive system, safe and reliable,with fewer failure rate and maintenance costs. Constant-power and stepless speed regulation are achieved, with more traction power to maximize the productivity.
3. Structurally enhanced frame
* Welded box sectional steel structure.
* High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability.
* Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc.
* The computer-aid design and finite element analysis ensure the frame have enough intensity.
Product Parameters
| Item | Unit | XDE110 | |
| Performance parameters | Rated Payload | t | 110 |
| Empty Weight | kg | 80000 | |
| Gross Vehicle Weight | kg | 190000 | |
| Drive Style | 4x2 | ||
| Max. Speed | km/h | 55 | |
| Max. Gradeability | % | 22 | |
| Min. Turning Diameter | m | 22 | |
| Overall dimension | mm | 10500*5800*5500 | |
| Engine | Model | Cummins KTA38 | |
| Rated Power/Speed | kW/rpm | 895/2100 | |
| Max. Torque/Speed | Nm/rpm | 4678/1300 | |
| Electric drive | Alternator | YJ116C | |
| Traction Motor | YJ198A | ||
| Ratio | 29.38:1 | ||
| Tires | Standard Tire | 30.00R51 Tubeless, all-steel radial tires | |
| Electrical | V | 24 | |
Photo Show
