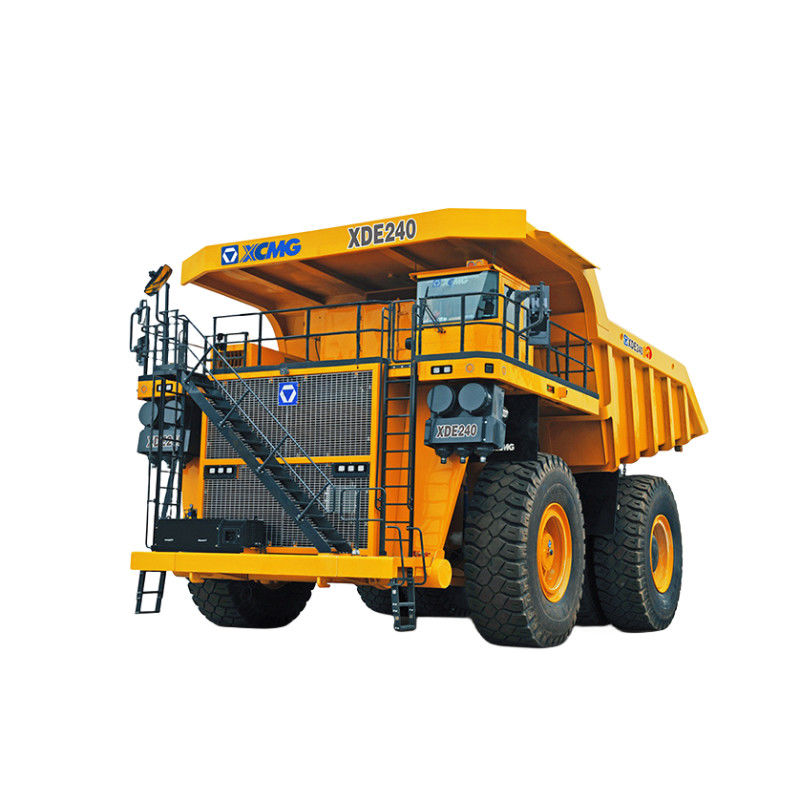

New Energy XCMG XDE240 Coal Mine Dump Truck 240 Ton Mining Dump Truck
* High performance engine
Environment- friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.
* AC-DC-AC electric drive system
XCMG trucks utilize AC-DC-AC electric drive system, safe and reliable, with fewer failure rate and maintenance costs.
Constant-power and stepless speed regulation are achieved, with more traction power to maximize the productity.
* Ergonomically designed cab
All instruments are in view, all controls are well designed and arranged to reach with low effort. All these offer a comfortable operator environment.
Product Parameters
| Item | Unit | XDE240 | |
| Performance parameters | Rated Payload | t | 240 |
| Empty Weight | kg | 165000 | |
| Gross Vehicle Weight | kg | 385000 | |
| Drive Style | 4x2 | ||
| Max. Speed | km/h | 56 | |
| Max. Gradeability | % | 17 | |
| Min. Turning Diameter | m | 28.4 | |
| Overall dimension | mm | 14230*7800*7300 | |
| Engine | Model | 16V4000 | |
| Rated Power/Speed | kW/rpm | 1864/1800 | |
| Max. Torque/Speed | Nm/rpm | 11868/1500 | |
| Electric drive | Alternator | GTA41 | |
| Traction Motor | GEB25 | ||
| Ratio | 31.8:1 | ||
| Tires | Standard Tire | 40.00R57 | |
