Second Hand Trucks
>
|
| Place of Origin | CHINA |
| Brand Name | FOTON |
| Certification | ISO9001 |
| Model Number | BJ1257VMPJP |

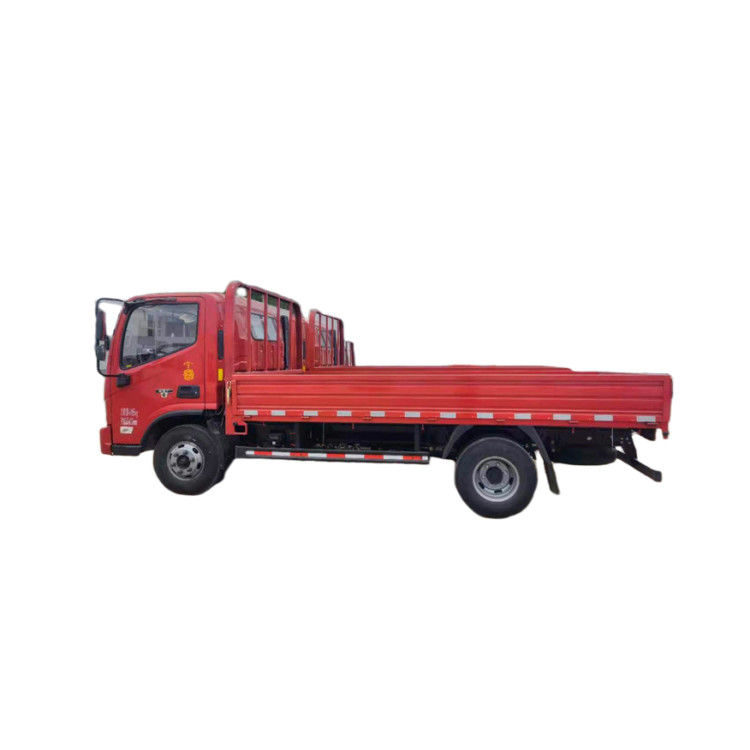

Used Light Duty Truck Foton 4x2 5T Second Hand Trucks Fence Cargo Truck
Product Highlights
The Foton 4X2 rigid light duty cargo trucks have strong power:The engine is mature, powerful and low niose.
According to the user's actual requirements,like load weight and speed,matches engines,gesrbox,rear axle ratio,and different types of tire,and fuel saving could reach 10-20%.
The Foton 4X2 rigid light duty cargo trucks are with strong loading capacity both in 3T and 3 to 5 tons light duty cargo trucks: the loading capacity of the front and rear axles is one ton larger than other products in the industry, the front axle matches 2T/2.4T/2.7T/3.2T/3.6T,
the rear axle matches 3.5T/4.2T/7.2T/8T/10.5T.
Brief Introduction:
| Basic configuration | |
| Type | Foton 5T cargo truck |
| Drive form | 4×2 |
| Steering wheel position | Left hand drive |
| Vehicle model |
BJ1065VDJD6-F1 |
| Vehicle size and bodywork parameters | |
| Wheelbase (mm) | 3360 |
|
Overall Dimension L*W*H(mm) |
5995X2075X2315 |
| Cargo Box Size(mm) | 4170X1960X400 |
| Cargo board thickness (mm) |
Floor 3mm, side 1.5mm
|
| Vehicle Parameters | |
| Curb weight(kg) | 2200 |
| GVW(kg) | 6000 |
| Maximum speed (km/h) | 95 |
| Engine | |
| Engine model |
BJ493ZLQV1 |
| Displacement (L) | 2.771 |
| Maximum power (kw/ps/rpm) |
76KW/3600 |
| Maximum output torque (Nm/rpm) | 225/1900-2200 |
| Engine Brand | Foton |
| Emission standard | Euro Ⅲ |
| Clutch | |
| Clutch type | Push |
| Friction plate size | φ260×φ160 |
| Gearbox | |
| Gearbox model |
5G32 |
| Gearbox brand | Wanlima Transmission |
| Brake | |
| Service brake | Drum hydraulic brake |
| Parking brake | Central drum brake |
| Auxiliary brake | Exhaust brake |
| Fuel type |
Diesel
|
|
Front Axle
|
2.4T (drum) |
|
Rear Axle
|
4.5T(drum) |
|
Speed ratio
|
5.375 |
|
Tyre
|
7.00R16, 7Tires |
Product Show
