| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ1257M4347W |
Sinotruk Garbage Truck 6X4 25T Hook Lift Garbage Truck Large Garbage Truck
Product Advantage
Detachable carriage garbage truck, also known as SINOTRUK 6x4 16T Hook lift truck, is equipped with a special vehicle hydraulic loading and unloading mechanism, will be dedicated to the towing carriage car or inclined to a certain angle to unload the garbage, and can be used for the carriage to unload, collection and transportation of garbage.
Product Parameter
| Model | ZZ1257M4347W | Max. Lifting Force | 17t | |
| Engine | WD615.62 Euro II | Height of Hook | 1570mm | |
| 266HP | Lifting Up Time | ≤40s | ||
| Gross Vehicle Weight | 25000kg | Lifting Down Time | ≤50s | |
| Dead Weight | 11070kg | Discharging Time | ≤50s | |
| Tyres | 12.00R20 | Discharging Angle | 50° | |
| Cab | HW76 Air-condition | Length Range of Garbage box(mm) | 5500--6400 | |
| Rated engine power | 213kW/2200r/min | |||
| Front Axle | HF9 | Hydraulic System Pressure | 30MPa | |
| Rear Axle | HC16 | |||
| Transmission | HW19710 | Locking Device of Garbage Box | external hydraulic locking | |
| Lock type of reardoor | Mechanical type | |||
| Overall Dimension(mm) | Changeable according to the body | |||

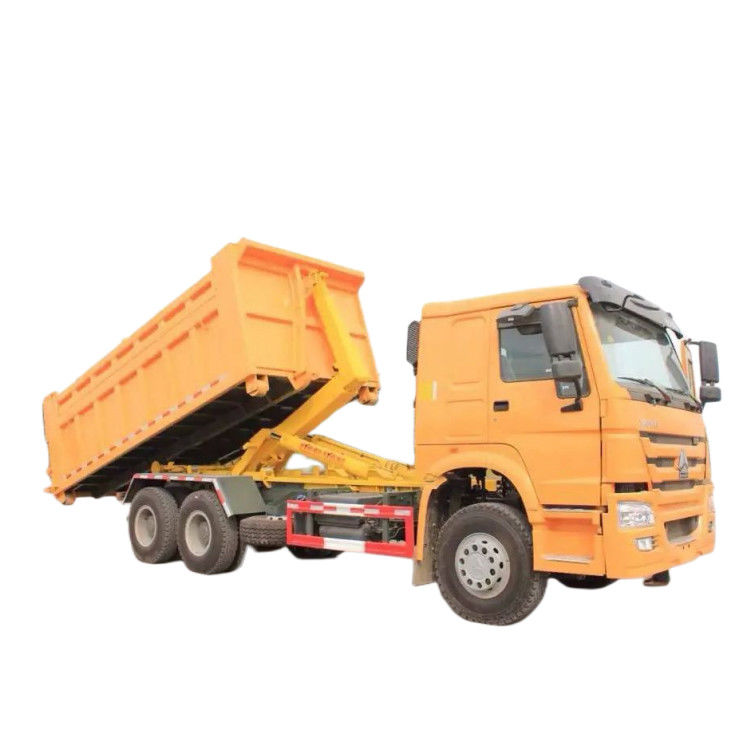

Product Photos
