Truck Mounted Crane
>
|
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | SQ14SK4Q |
(1) Factory price, more competitive compared with that of agent
(2) Quality: all trucks are brand new,
(3) After-sales service: professional after-sales service team reply you in 3 working days for your truck special or urgent problems
(4) Spare parts: own parts warehouse and service personnel, all original spare parts can be purchased from us directly with low price
(4) Shipment: cooperation with international shipping company to ensure the successful transportation.
Product Parameter
| Cabin | Driving type 6x4 | |
| HOWO 76 cab, with air condition and one bed. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 10000×2500×3710 |
| Carriage Size (L x W x H) mm | 5600×2300×800 | |
| Wheel base (mm) | 3225+1350 | |
| Wheel track (front/rear) (mm) | 2022/1800 | |
| Approach/Departure angle(°) | 10/16 | |
| Weight in KGS | Tare Weight | 13200 |
| payload | 40000 | |
| Front axles loading capacity |
HF7, 7000kg Option: HF9, 9000kg |
|
| Rear axles loading capacity |
ST16, 2x16000 Option:HC16,2x16000 |
|
| Engine | Model | WD615.69 |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 336 HP | |
| Emission standard | Euro II | |
| Gearbox | HW19710,10 Forwards gear & 1 reverse gear | |
| Steering | ZF8118, from Germany | |
| Tire | 12.00R20 all radial steel tires | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Crane specifications | Brand : XCMG | |
| Type: Telescoping | ||
| Max lift capacity: 10000 kg | ||
| Max working radius 12 m | ||

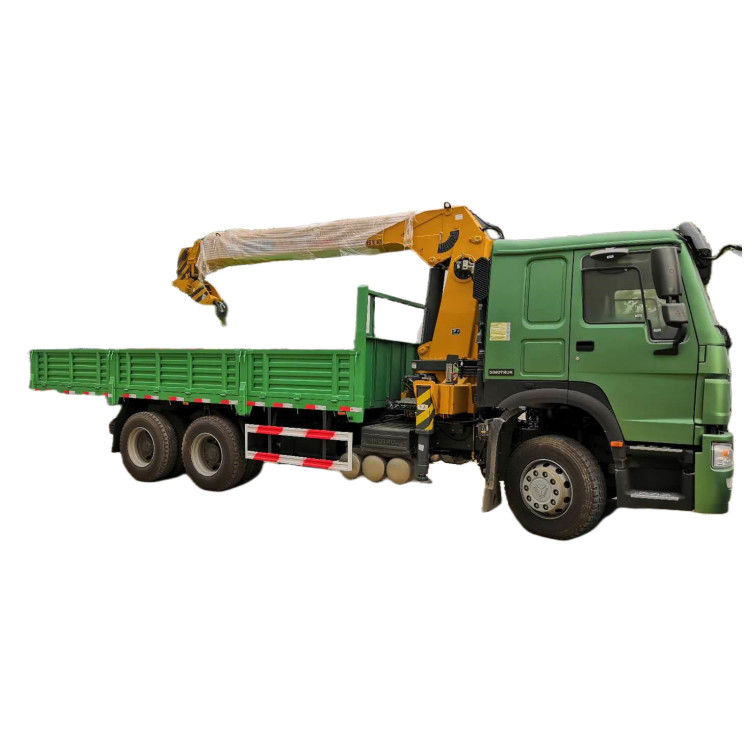

Product Photos
