Heavy Truck Tractor
>
|
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUCK |
| Certification | ISO |
| Model Number | ZZ4188G3610C1 |

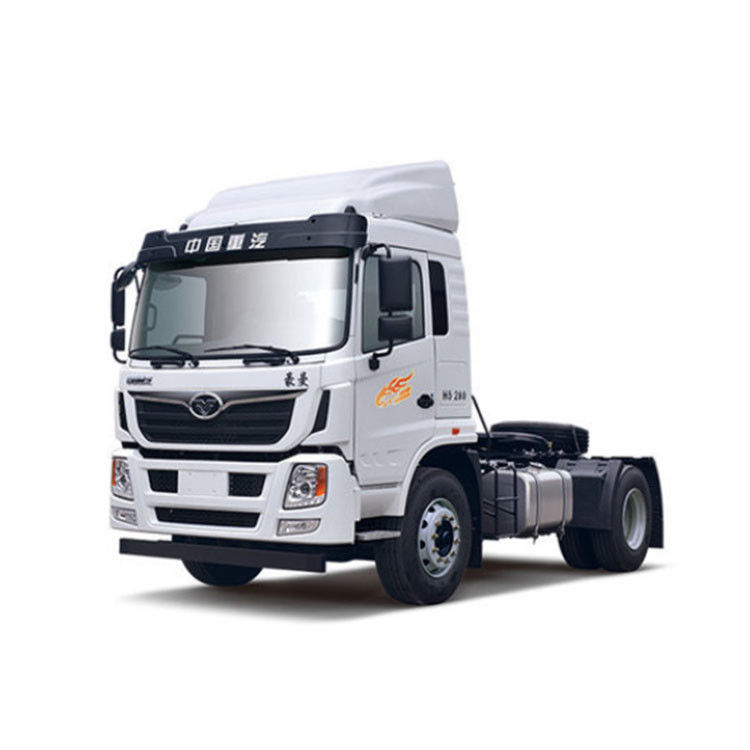

SINOTRUK HOMAN Heavy Truck Tractor 4x2 6 Tons Tractor Truck For Road Transportation
H5 series truck assembly: MAN L2000 cabin and D13,D15 cabin; YUCHAI series engine from 140HP to 260HP；Sinotruk HW/DC and ZF series gearbox；8-16T driven axle；3.6-7T front axle professional import and export dealing procedure, make customs clearance more high efficiency.
1. Sinotruk HOHAN H5 4x2 tractor Chassis with the design conception of modularization, to enhance the generic rare of the spare parts in different models, reduce the varieties of spare parts, facilitate to store after sales spare parts
2. Airbag shock seat can ne optional, cabin with the suspended floating design, can effectively reduce the bumping of the road and improve the comfort ability.
3. braking system:Key valve components all adopt the commercial vehicle electronic brake system produced by WABCO company, the technical requirements completely meet European standard, braking performance is excellent, to ensure driving safety.
Product Parameter
| SINOTRUK HOWO 4x2 Tractor Truck Specifications(Euro III) | ||
| Model: | ZZ4188G3610C1 | |
| Overall Dimension (L x W x H) | 5915X2496X3050 (mm) | |
|
Parameters
|
Cabin |
H5 half-top cab (four-point suspension) |
| Curb Weight: | 5700kg | |
| GVW: | 15000kg | |
| Wheelbase: | 3600mm | |
| maximum speed | 85km/h | |
| Drive Type: | 4x2 | |
| Engine | Engine Model: | YC6J220-33, YC6J180-33 |
| Engine Power: | 220 HP,180HP | |
|
Transmission
|
Transmission: | Manual DC7J100T optional HW90510C |
| Forward Gear: | 10 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Axle | Front Axle | 153 |
| Rear Axle | 457 option:ST16 | |
| Rear Axle Ratio: | 4.875, 5.286 | |
| Chassis | Front suspension | 11X11 multi-leaf spring optional leaf spring |
| Rear suspension | 13x10 +13x9 multi-leaf spring optional leaf spring | |
| Tires: | 7(Including Spare Tire) | |
| Tire Model: | 10.00R20 | |
| Fuel Tank Capacity: | 300L aluminum tank | |
Detailed Photos
