| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ3138G3915C1 |
1. Chassis with the design conception of modularization, to enhance the generic rare of the spare parts in different models, reduce the varieties of spare parts, facilitate to store after sales spare parts
2. Airbag shock seat can ne optional, cabin with the suspended floating design, can effectively reduce the bumping of the road and improve the comfortability.
3. braking system:
Key valve components all adopt the commercial vehicle electronic brake system produced by WABCO company, the technical requirements completely meet European standard, braking performance is excellent, to ensure driving safety.
Product Parameter

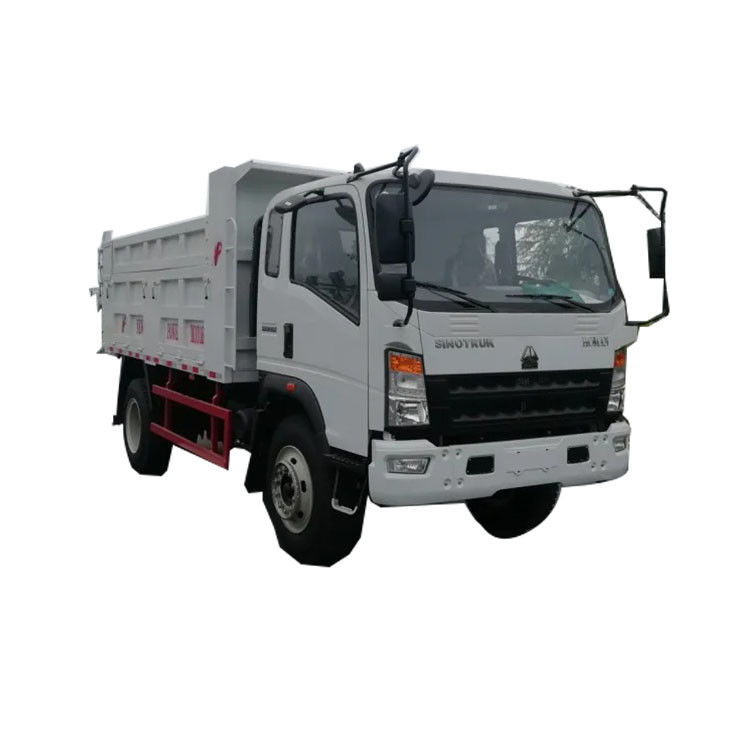

| SINOTRUK Dump Truck Specifications(Euro II ) | ||
| Dumper Model: | ZZ3138G3915C1 | |
| Overall Dimension (L x W x H) | 6775*2500*2985(mm) | |
| Dumper Parameters | Box Inside Dimensions | 4500*2300*800MM |
| Curb Weight: | 5500kg | |
| GVW:(GROSS VEHICEL WEIGHT) | 15000kg | |
| Wheelbase: | 3900mm | |
| Lifting Angle | 46° | |
| Drive Type: | 4x2 | |
| Engine | Engine Model: | YC4E190-33 |
| Engine Power: | 190 HP | |
| Transmission | Transmission: | Manual HW90510C |
| Forward Gear: | 10 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Seats | Front Seat: | 2 |
| Rear axle | Axle Loads: | 5000/10000kg |
| Rear Axle Ratio: | ||
| Chassis |
Approach/Departure angle: |
24/12° |
| Leaf Spring: | ||
| Tires: | 7(Including Spare Tire) | |
| Tire Model: | 10.00R20 | |
| Fuel Tank Capacity: | 150L | |
